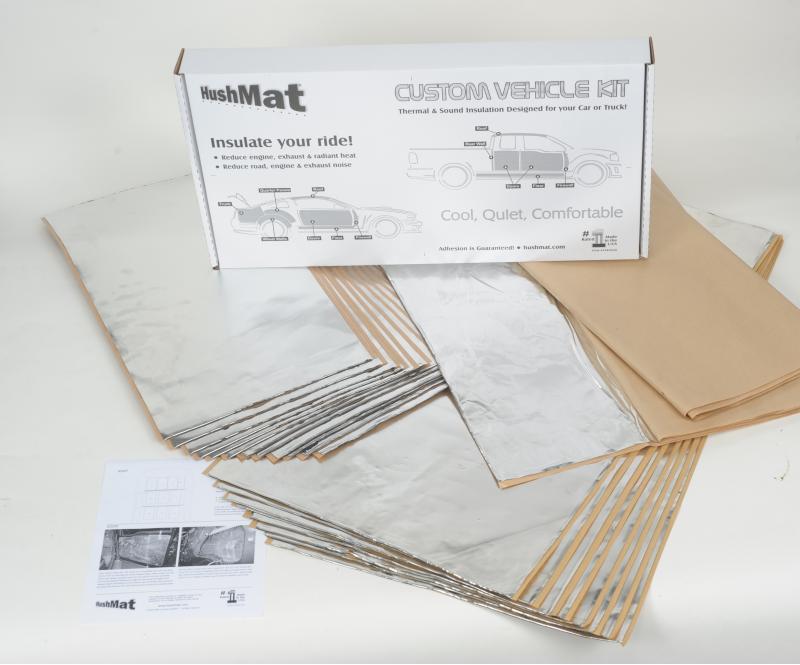

Hushmat Complete Year, Make and Model Vehicle Insulation kit covers 100 percent of the area of your vehicles firewall, floor, doors, roof and cargo area. HushMat has determined the exact amount of material required for your vehicle.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.
Comfort, cargo space, utility and convenience are earmarks of VAN styling. You can reduce interior noise and heat with one material. Your VAN is fun to drive, but in the summer it gets hot. There is over 200 degrees of heat cooking your firewall and floor pan. Your engine and exhaust generate tremendous heat that transfers to the metal firewall and floor and this heats up your VAN interior. It can create a very uncomfortable ride, especially in the summer. This also forces your AC system to work harder to reduce and maintain comfortable temperatures inside your VAN. HushMat proprietary USA manufactured chemistry makes the automotive heat shield dissipate this heat, insulating your interior, and improving the load on your HVAC system which makes your VAN significantly cooler in the summer and warmer in the winter. HushMat is proven in an independent study to lower this temperature by over 40 percent. Nothing beats the heat and noise like HushMat. Your VAN is large and holds all the luggage and passengers you need. The rear wheels and wheel wells sit right in the cargo area and the road noise passes right into the passenger compartment. When you drive on the highway at approximately 65 miles per hour the interior of your VAN is approaching 80 to 90 decibels of noise. That is like placing a vacuum cleaner or garbage disposal running on your passenger seat. You deal with this every day. HushMat offers you a solution. It is also the number 1 Rated in performance. Hushmat is packaged specifically for your VAN to provide 100 percent insulation coverage, there are no holes in the material and no puzzle pieces to put together. Simply apply the HushMat material as shown in the Installation Guide to provide the car sound deadening and auto heat shield you deserve. Treat your firewall, doors, floor, tunnel, rear wheel wells, cargo floor and roof with this complete kit.
| Download Name | File Size |
| HushMat Ultra Specification Sheet.pdf | 149.54KB |
| HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf | 23.13KB |
| HushMat_Sell Sheet_CustomVehicleKit_FINAL.pdf | 1.07MB |
| Hushmat Install Guide 1932 Ford Coupe.pdf | 1.85MB |
| Damping Pad MSDS.pdf | 26.43KB |
| Make | Model | Submodel | Years |
| Ford | Transit-250 | Base | 2015 - 2023 |
| Ford | Transit-250 | PTV | 2016 - 2023 |
| Cold Flexibility | Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion |
| Color | Polymer - Black; Backing - Silver |
| Flammability | Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard |
| Hardness | 6.5 - 9.0mm ?ASTM D-5 |
| Part Type | Thermal Acoustic Insulation |
| Peel Strength | Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported. |
| R-Value | 7 |
| Safety | HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product. |
| Shelf Life | At least 6 months when stored at 40 degrees C or less |
| Specific Gravity | 1.47 (approx. 0.47 pounds per square foot) |
| Temperature Resistance | HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions. |
| Thickness | 1.5mm |
| Warranty | Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise. |
