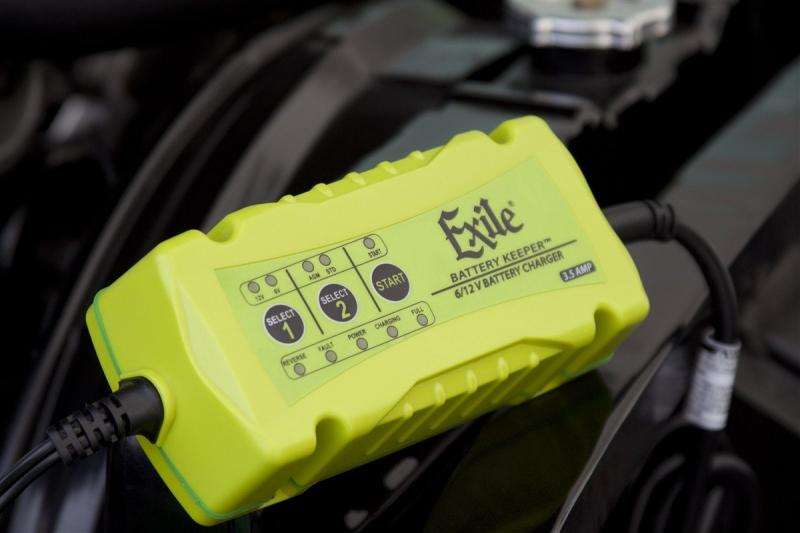

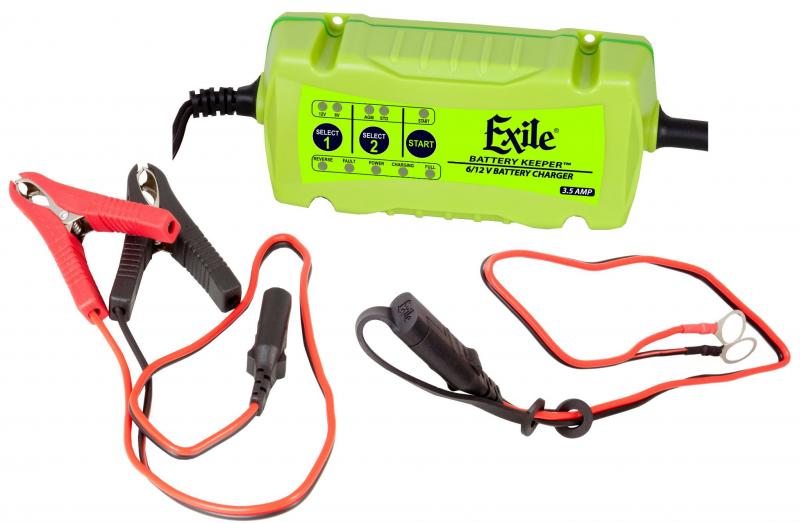

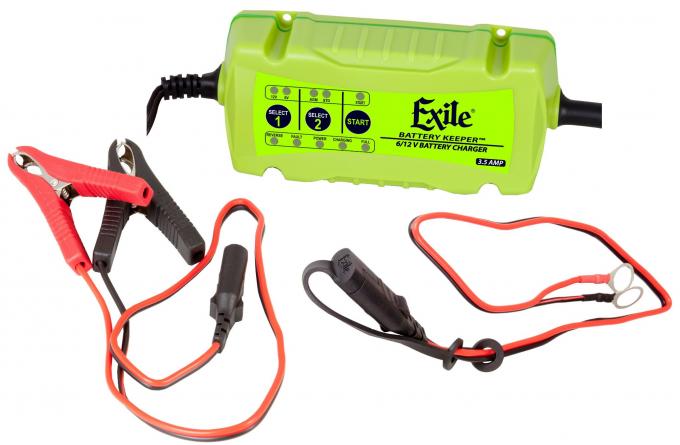

The Exile EX-1 Battery Keeper charger and maintainer is perfect for anyone who doesn't drive their vehicle every day. This is much more than a battery charger; the EX-1 keeps your battery in peak shape by providing a conditioning charge any time voltage begins to dip. This "pulse charge" maintains the battery without over-charging or "gassing" the battery, which leads to much longer battery life. It includes an LED battery status indicator, so you will always know your battery's state of charge. The EX-1 is waterproof and dust proof, so it can be permanently mounted in the vehicle next to the battery compartment. With the EX-1, you will always have the peace of mind of knowing your classic vehicle's battery is ready when you are.
| Download Name | File Size |
| ex1batterykeepermanual_6-30-16.pdf | 4.6MB |
| Approval | UL for US and Canada |
| Battery Capacity | 12-70Ah, Maintains All Battery Sizes |
| Battery Chemistries | Wet, Gel, MF & AGM |
| Charger Type | 4 Step, Fully Automatic, Switch-Mode |
| Charging Current | 3500mA |
| Charging Voltage | 7.2V/14.4V |
| Dimensions (L x W x H) | 6.5 x 2.9 x 1.83 Inches |
| Efficiency | 82% Approx. |
| Housing Protection | IP65 |
| Input Current | 1.2A RMS Max |
| Input Voltage AC | 120 VAC, 60Hz |
| Power | 68W Max |
| Type of Batteries | 6V & 12V Lead-Acid |
| Weight | .53 Kg/ 1.17 Pounds |
| Working Voltage AC | 110-130 VAC, 50-60Hz |
